iPEK Quickview
A wireless manhole zoom-camera inspection system that assesses sewer condition from the manhole up to 120 meters into the mainline — patented Haloptic lighting, covering DN150 to DN1200 pipes.

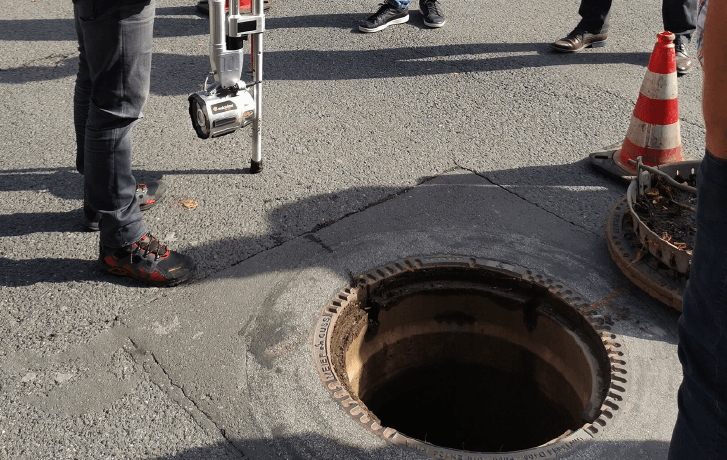

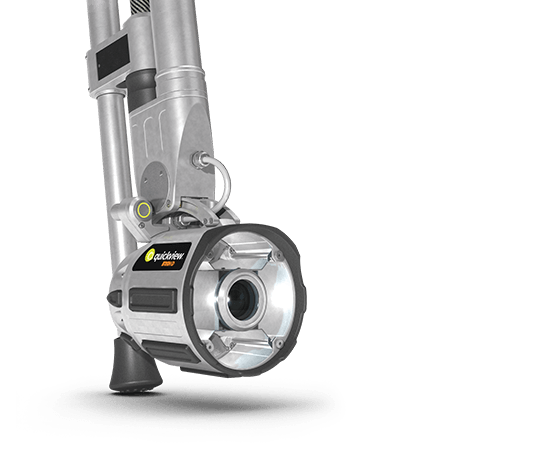

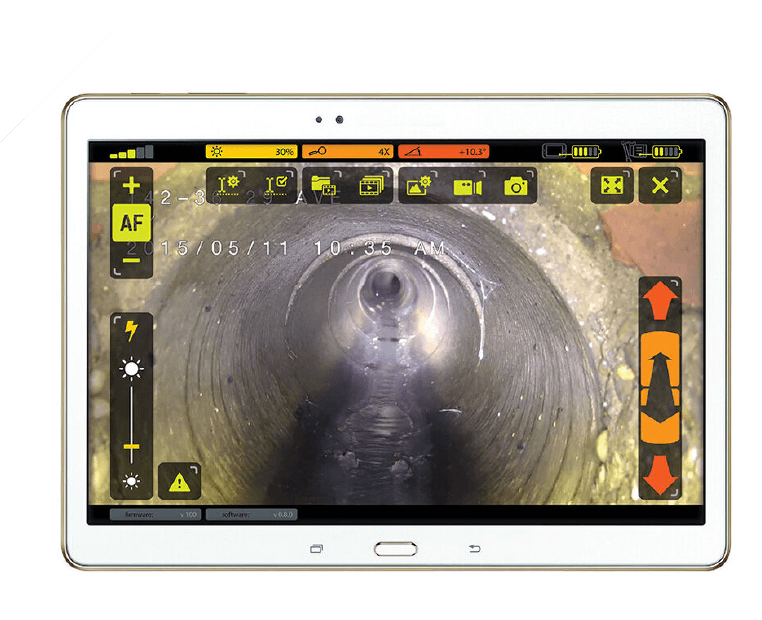

iPEK Quickview (Air-HD) is a manhole zoom camera that rapidly assesses sewer condition from the manhole, helping plan further cleaning, inspection or rehabilitation work. Covering pipe diameters from DN150 to DN1200, it offers sight distances of up to 120 meters into the mainline and is equipped with patented Haloptic Lighting for dark sewer environments. With an HD camera, Quickview is controlled wirelessly from a tablet via the WinCan Sewerlink app on iOS, Android and Windows devices. It offers remote zoom and tilt, live viewing and playback, text/angle/distance annotation, and WinCan Web cloud integration; an optional laser rangefinder enables more precise measurements. Its portable, cable-free design deploys to depths of up to 9 meters without confined-space entry, making it ideal for rapid preliminary surveys and field assessments.
Technical Specifications
- Mainline Sight Distance
- Up to 120 m
- Pipe Compatibility
- DN150 - DN1200
- Deployment Depth
- Up to 9 m
- Video Quality
- HD
- Illumination
- Patented Haloptic Lighting
- Control
- Wireless tablet control via WinCan Sewerlink app (iOS/Android/Windows)
- Optional Feature
- Laser distance measurement
- Connectivity
- WinCan Web cloud integration
- Deployment
- Portable, cable-free, no confined-space entry
Request a Quote for This Product
