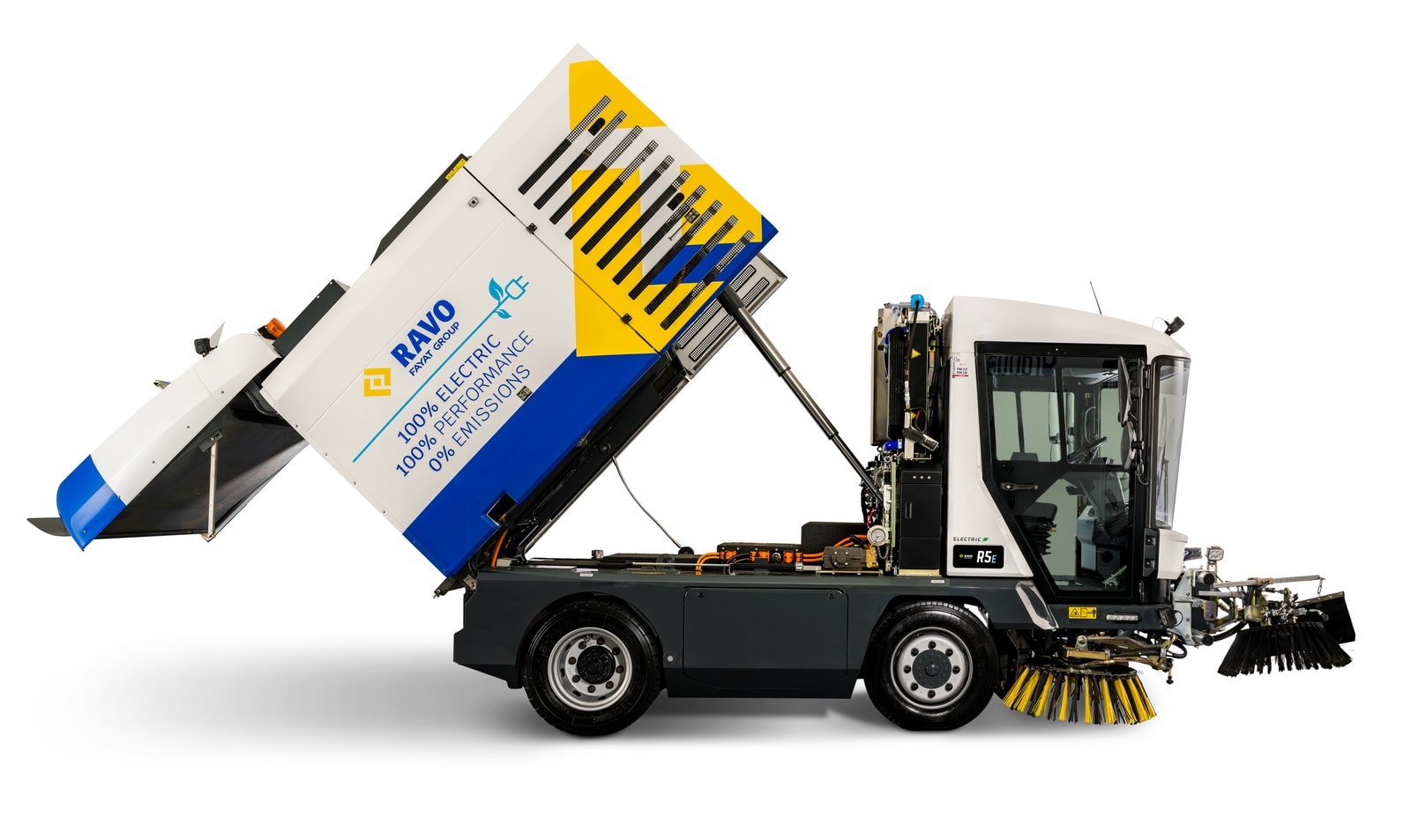

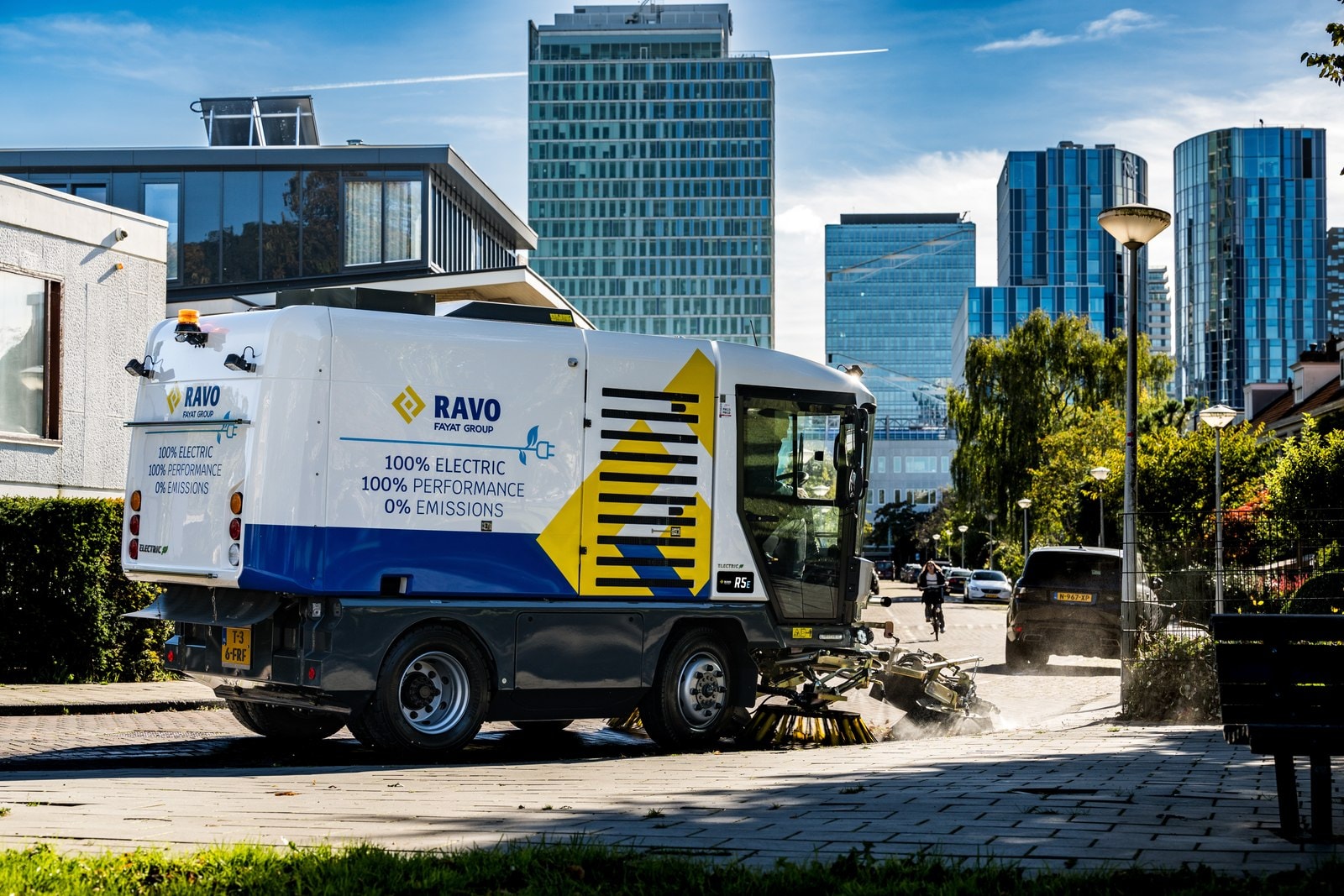

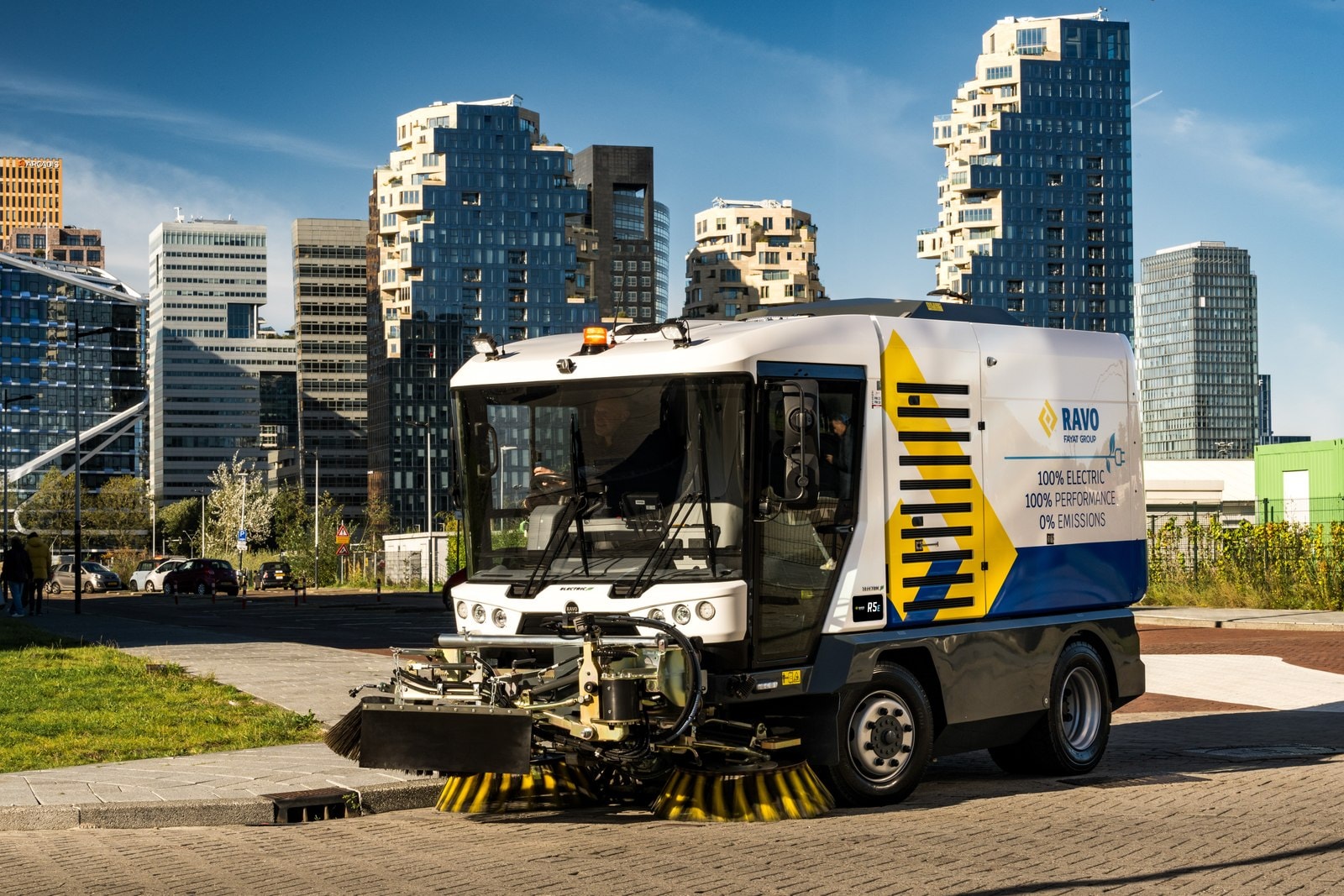

Ravo E5
A fully electric, zero-emission compact sweeper with a 5 m³ hopper and a 120 kWh LiFePO4 battery.
Running on a fully electric drivetrain, this sweeper matches its diesel counterpart's working capacity — a 5 m³ hopper and 600-liter water tank — with zero tailpipe emissions. Its 120 kWh LiFePO4 battery fully charges in under 4.5 hours via a 22 kW Type 2 connector, or in about 2 hours via 70 kW CCS Combo 2 fast charging. A regenerative braking system improves energy efficiency, while noise levels — 93 dB outside the cabin and under 61 dB inside — make it well suited to night work and noise-sensitive areas. The battery is covered for 8,000 operating hours or 5 years.
Technical Specifications
Capacity
- Hopper
- 5 m³
- Water Tank
- 600 L
Battery
- Type / Capacity
- LiFePO4, 120 kWh / 480V
- Warranty
- 8,000 operating hours or 5 years
Charging
- Type 2 (22 kW)
- <4.5 hours
- CCS Combo 2 (70 kW)
- ~2 hours
Performance
- Sweep Width
- 2,200-2,500 mm
- Top Speed
- 0-40 km/h
Noise
- Exterior / Cabin Interior
- 93 dB / ≤61 dB
Weight
- Gross Vehicle Weight
- 11.4 tonnes
Request a Quote for This Product
