Vactor 14000 Lt

A high-capacity 6X2 combination sewer cleaning truck with a John Deere diesel engine, a 9 m³ debris tank and a 4,900-liter water tank — clearing 120-200 meters of sewer line in a single pass.

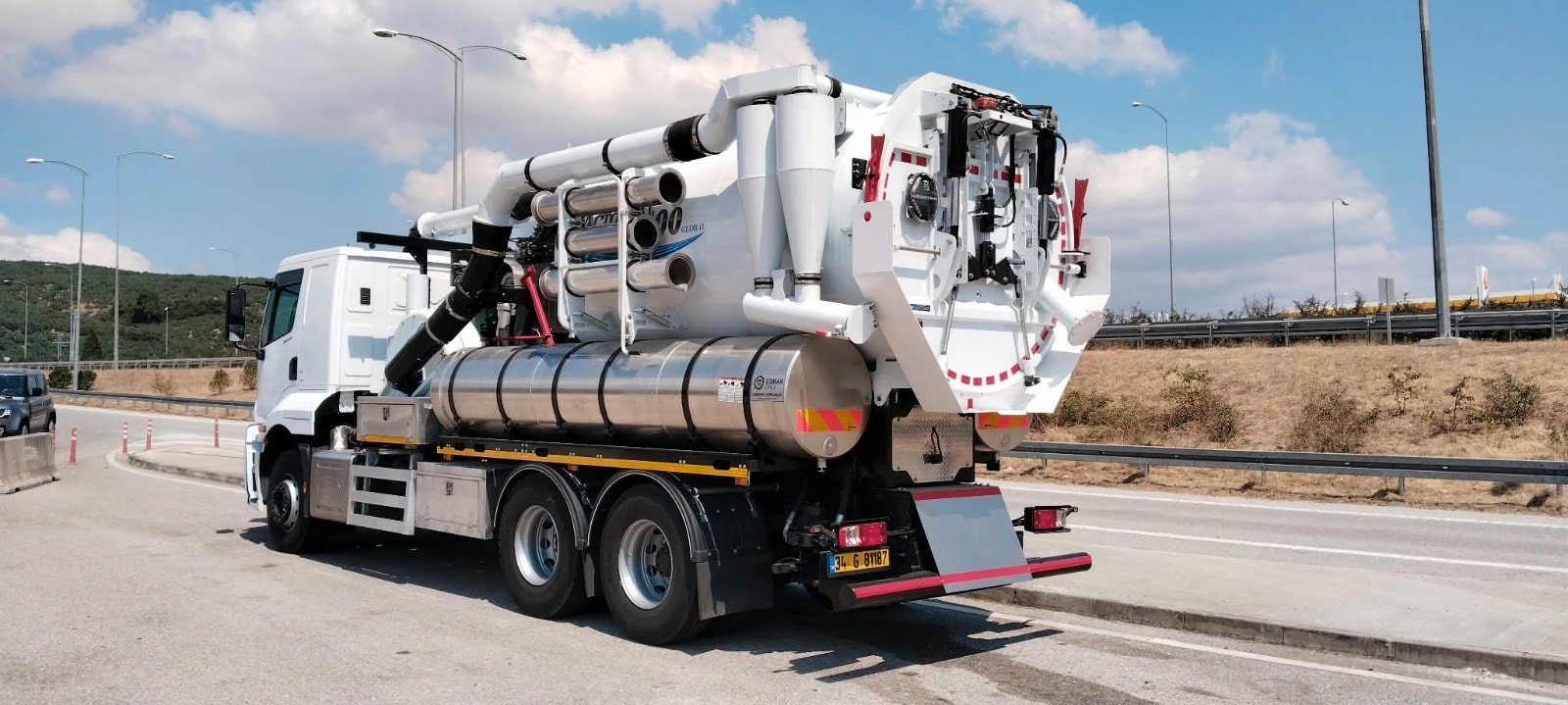

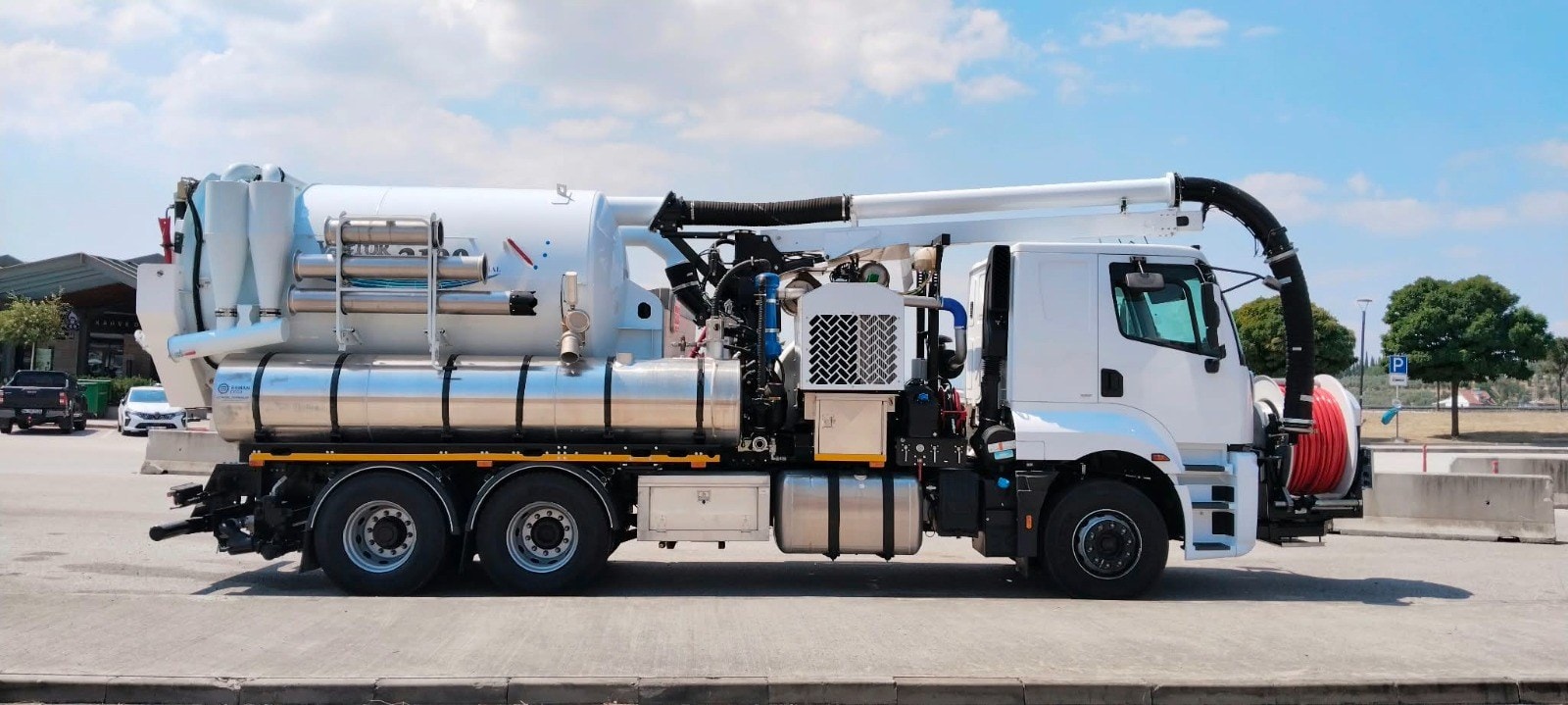

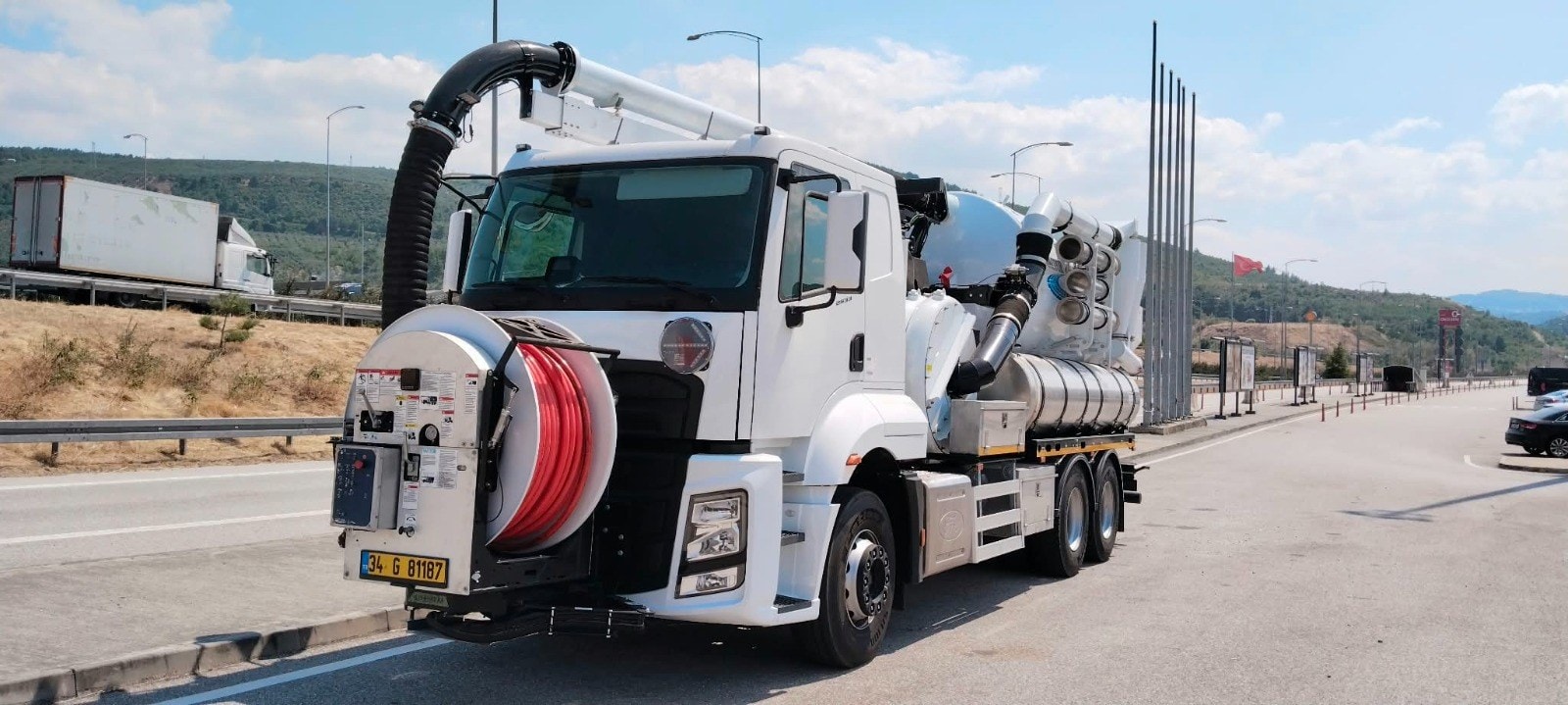

The Vactor 14000 Lt is a combination sewer-cleaning truck built on a 6X2 chassis for large-scale infrastructure cleaning work, powered by a 6-cylinder, 185 HP John Deere diesel engine. It carries a 9 m³ debris tank made from wear-resistant ex-ten steel and two aluminum (Al50) water tanks totaling 4,900 liters. Its single-piston, hammer-impact 170 bar water pump runs at an adjustable flow of 0-300 L/min and can run dry for up to 30 minutes. A dual centrifugal fan vacuum system delivers at least 14,000 m³/hour of vacuum power; with its 200 mm suction pipe, it can clear a 120-200 meter length of sewer line in a single pass and suck from depths of up to 20 meters. It's equipped with a 120-meter, 1-inch high-pressure hose reel and a 10-meter hose for the rewind-wash system; a telescopic boom that rotates 270° gives it a wide working range. Its hydraulically locked rear door, opening 50°, safely discharges collected waste. Able to operate both stationary and on the move, combining jetting with simultaneous solid/liquid suction, it's a high-capacity solution for large municipalities and industrial facilities.

Technical Specifications
